JC601 cabinet-fit and RFQ check

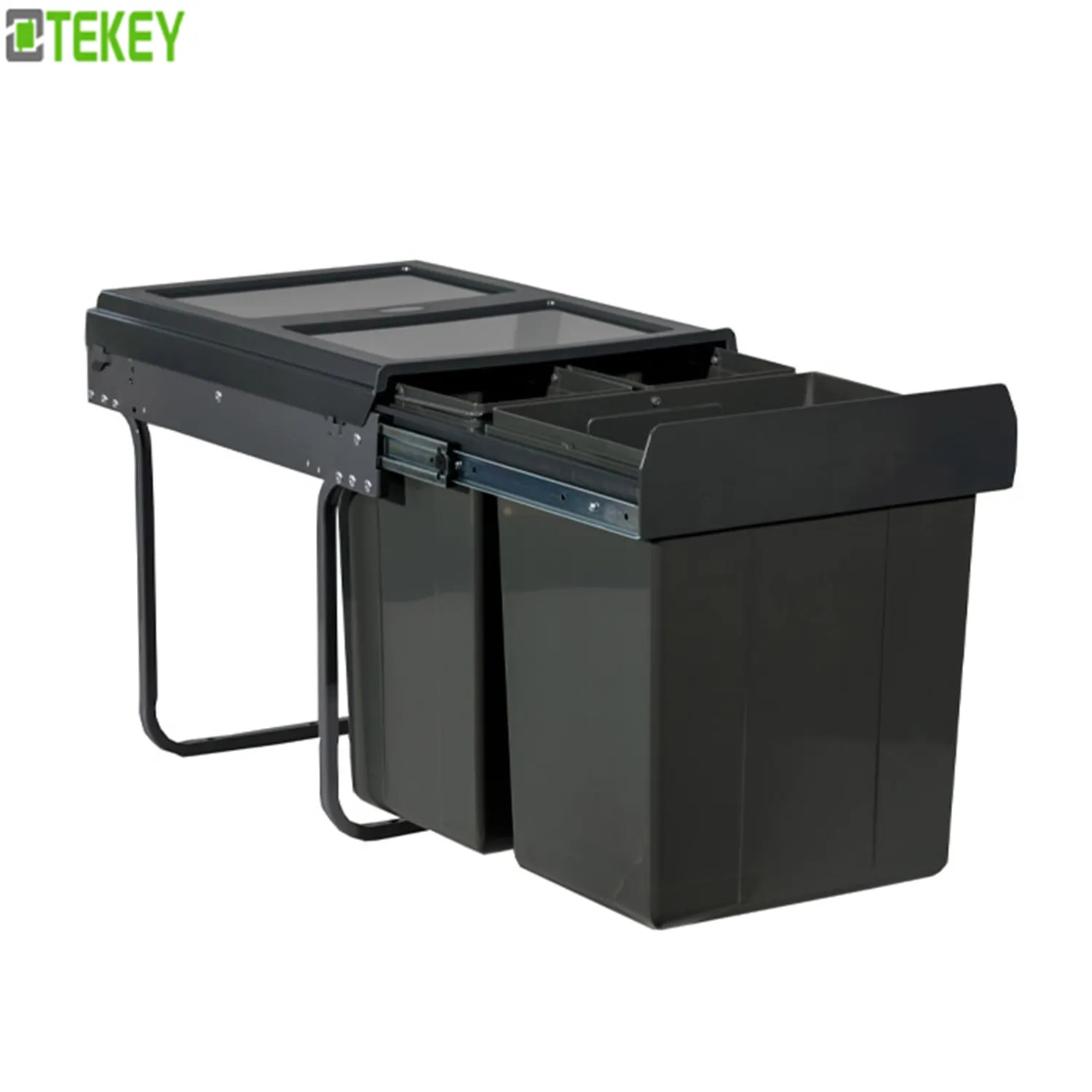

JC601 Triple Pull Out Trash Bin for 400mm Cabinet Projects
Tekey JC601 gives cabinet brands, project buyers, and kitchen hardware distributors a 40L built-in waste-bin option for 400mm base cabinets. Use this page to qualify a wholesale kitchen cabinet waste bin project and compare key details from pull out trash bin manufacturers before sending an inquiry.
Cabinet-fit facts
Confirm the Cabinet, Capacity, and Loading Boundary

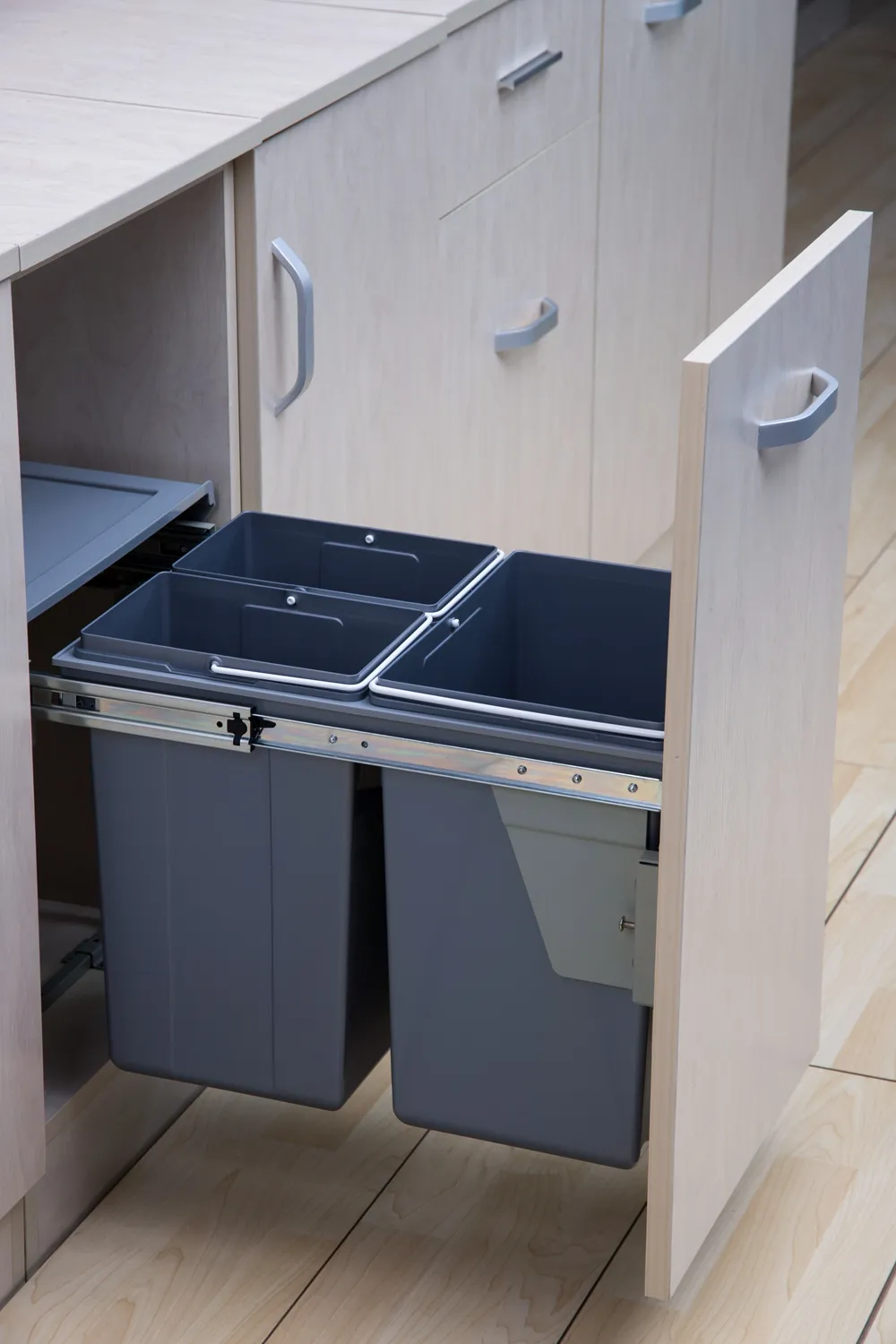

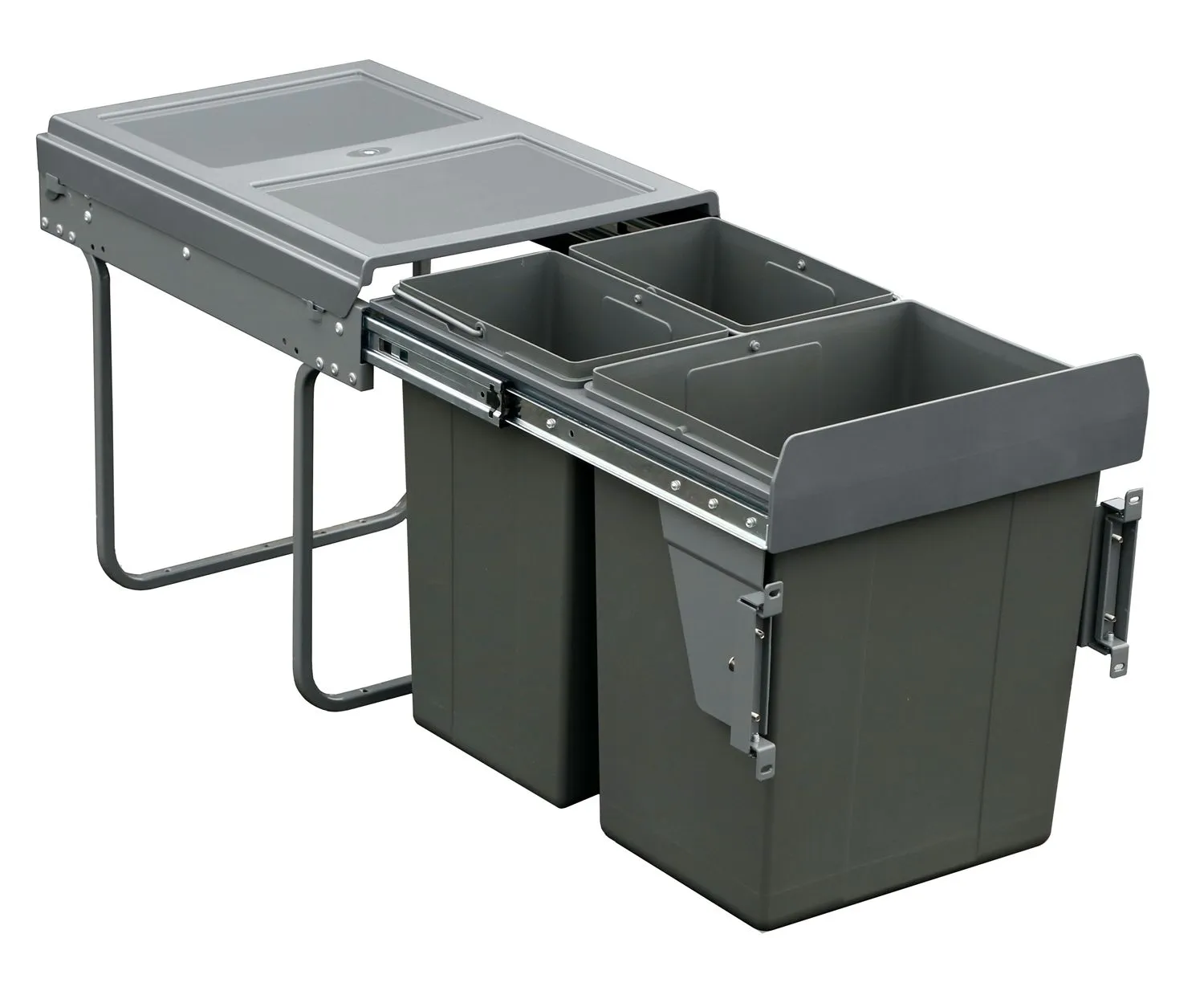

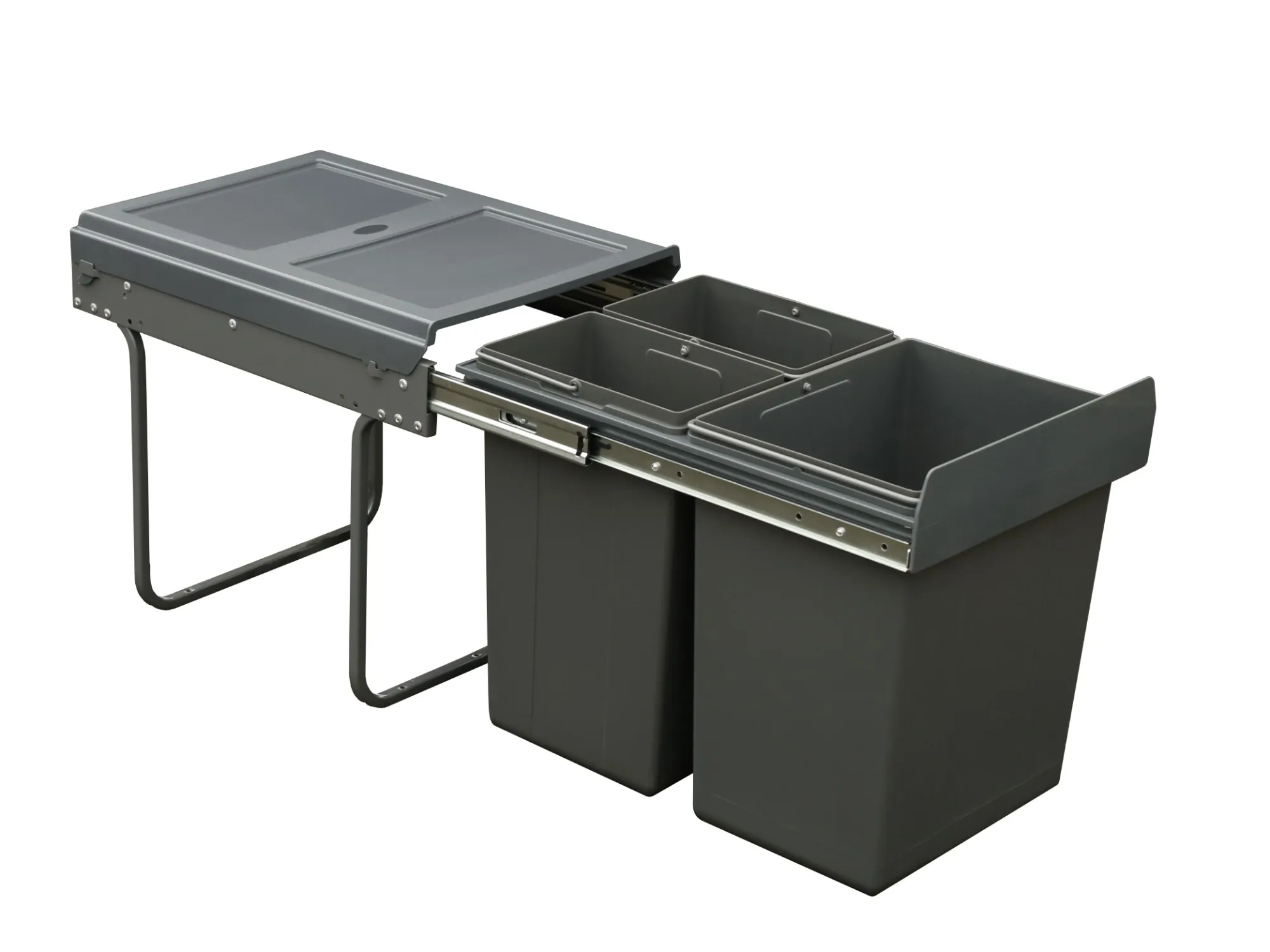

JC601 is a base-mounted built-in bin for buyers who need a compact triple-container layout, predictable pull-out movement, and quote information that can be checked before sampling.
Specification table
JC601 Details for Procurement Review
| Product | Tekey 400mm cabinet based mounted triple kitchen waste bin |
|---|---|
| Item | JC601 |
| Series | Base Mounted Series |
| Cabinet fit | Pull out bin for 400mm cabinet |
| Material | PP&ABS body and cover |
| Capacity | 40L, including listed 20L plus two 10L configurations |

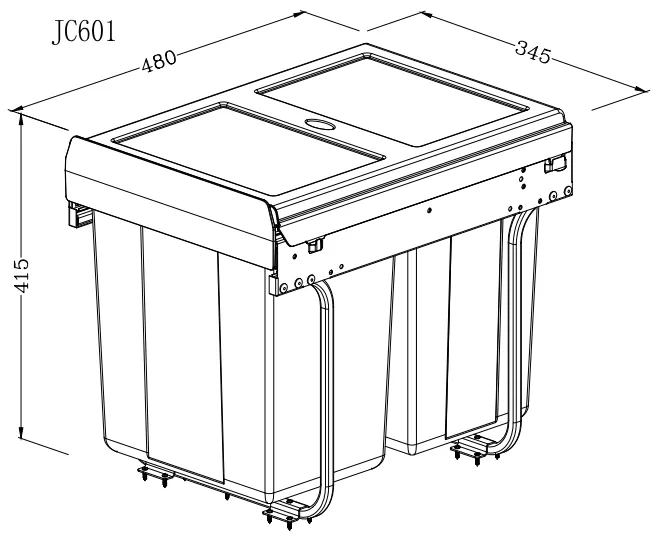

| Size | 345mm width, 480mm depth, 415mm height |
| Weight | 7.6kg gross weight and 6.8kg net weight |
| Carton | 0.49 x 0.35 x 0.43 meter |
| Buyer notes | Check cabinet opening, slide preference, door bracket need, quantity, destination, and requested customization before quote preparation. |
Variant decision board
Select the Slide and Door-mount Configuration
The JC601 family separates the buying decision into slide closing style and whether a door mount bracket is needed. Capture the model code in the inquiry so Tekey can match the quote to the cabinet plan.
Self close slide
345 x 480 x 415mm, 20L plus two 10L containers, with self close ball-bearing slides.
Soft close slide
Same listed size and bin layout, with soft close ball-bearing slides for smoother movement.
Self close with bracket
Self close ball-bearing slides plus door mount bracket for cabinet-door integration.
Soft close with bracket
Soft close ball-bearing slides plus door mount bracket for projects needing paired door movement.
RFQ inputs
Information to Prepare Before Contacting Tekey
A clear inquiry shortens back-and-forth communication and helps the quote reflect the actual cabinet program instead of a generic bin request.
Cabinet Fit
Share the cabinet width, usable opening, internal depth, door style, and whether the project requires a door mount bracket.
Bin and Slide Choice
Specify JC601-CXS, JC601-CXB, JC601-CNS, or JC601-CNB, and note whether self close or soft close movement is preferred.
Order Scope
Include quantity, destination, target schedule, color or capacity adjustment needs, and whether the project requires OEM changes.
Quality Expectations
Ask about sample review, packaging details, 100,000-cycle testing claims, and warranty terms for the defined project scope.
Related Tekey products
Compare Other Cabinet Waste-bin Options
If the cabinet width, capacity target, or slide layout changes, these Tekey product pages offer adjacent options for the same kitchen waste-bin sourcing path.

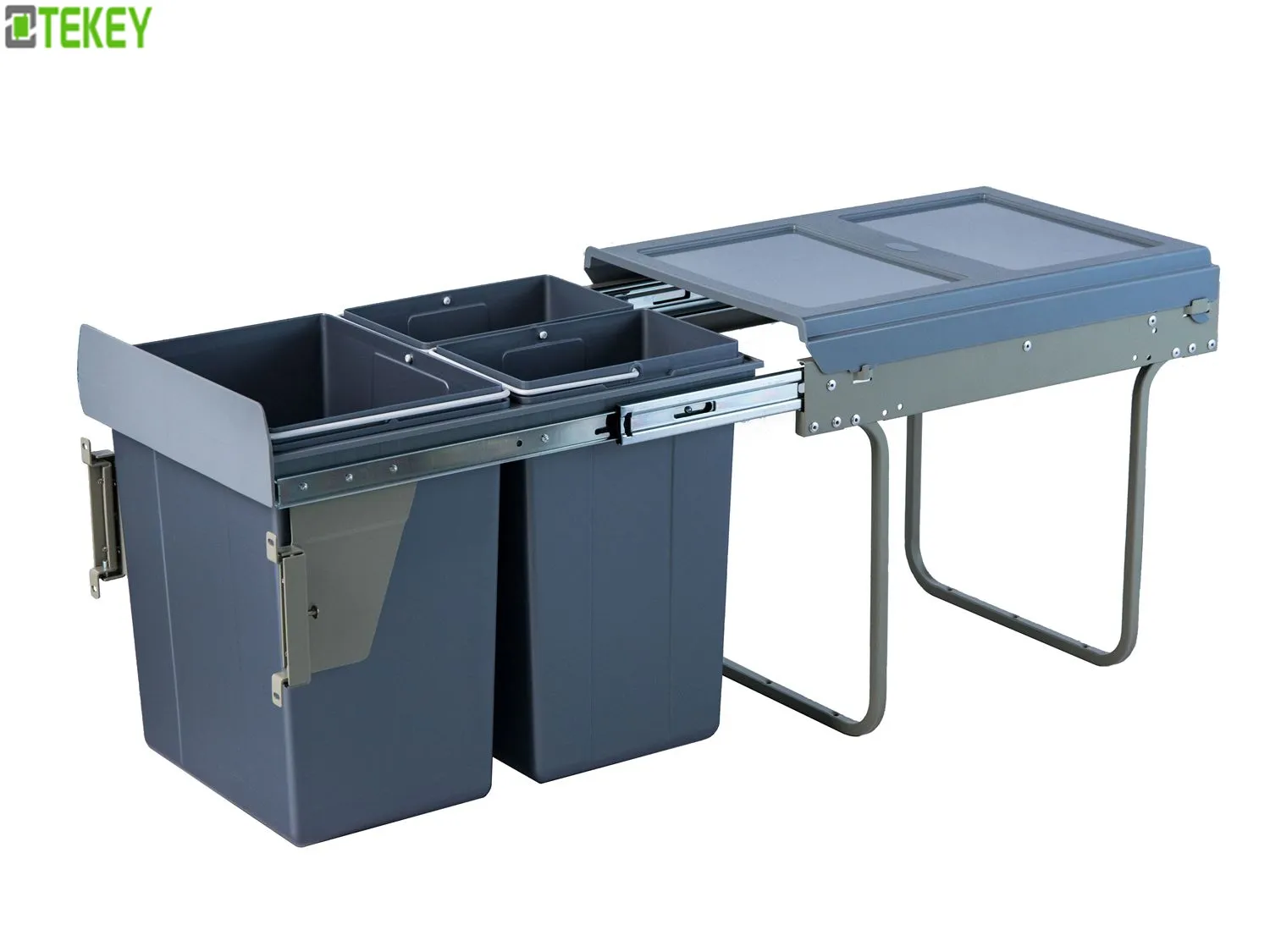

Built-in PP Kitchen Plastic Trash Bin
A 40L built-in option for 400mm cabinet projects, using PP&ABS material and a neutral cabinet-bin layout.
View product details
Double Soft Closing Pull Out Cabinet Waste Bin
A double-bin 40L option with soft closing movement for 400mm cabinet programs.
View product details

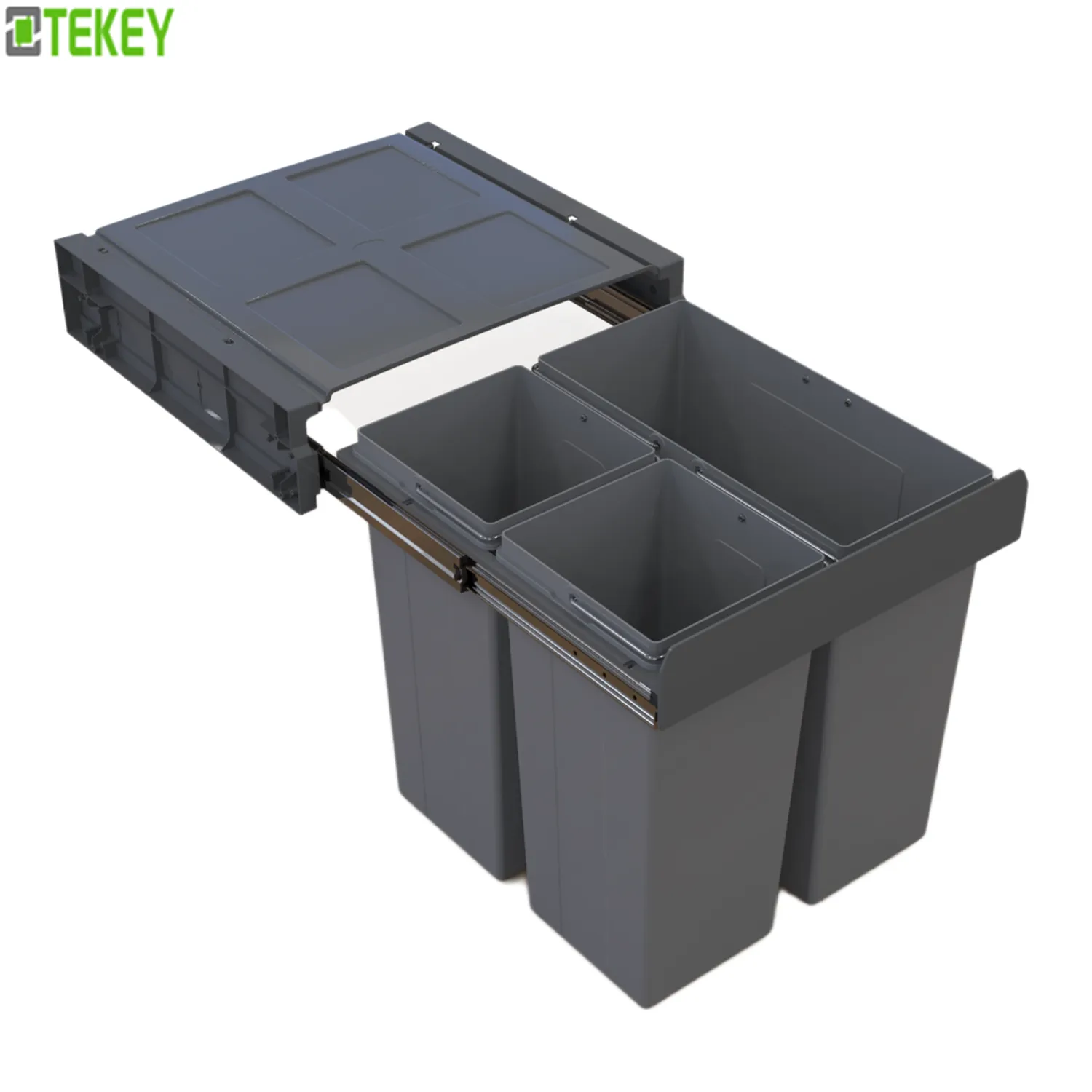

JC648N High-capacity Pull-out Module
A larger 68L side-mounted option for 500mm cabinet projects that need more capacity than JC601.
View product detailsFurther reading
Support the Cabinet Waste-bin Buying Decision
These Tekey articles focus on supplier selection, OEM under-counter bin planning, and factory capability for pull-out waste-bin programs.
Built-in Triple Trash Can Supplier Selection
Review how durability, customization, and practical waste-management needs shape supplier evaluation for triple-bin cabinet programs.
Read the article
OEM Under-counter Garbage Bin Solutions
Check how standardized cabinet sizes, durable materials, and OEM planning affect built-in waste-bin projects.
Read the article
Custom Pull Out Waste-bin Factory Capability
Use factory capability, material choices, and ergonomic layout as discussion points for custom pull-out waste-bin projects.
Read the articleFAQ
JC601 Cabinet Waste-bin Questions
What cabinet width is JC601 designed for?
JC601 is listed for a 400mm cabinet. Buyers should still confirm the internal cabinet opening, door clearance, and installation space before placing an order.
What capacity does the JC601 triple-bin layout provide?
The JC601 family is listed as a 40L solution, including configurations such as 20L plus two 10L containers for separated kitchen waste handling.
Which JC601 slide and bracket options are available?
JC601-CXS and JC601-CNS use self close ball-bearing slides, while JC601-CXB and JC601-CNB use soft close ball-bearing slides. CNS and CNB versions add a door mount bracket.
What material and color are listed for JC601?
The product information lists PP and ABS for the body and cover, with Cold grey7012 as the listed color.
What load rating and package information should be checked?
JC601 is listed with a 25kg maximum loading, 7.6kg gross weight, 6.8kg net weight, and a carton size of 0.49 by 0.35 by 0.43 meter.
What should be included in a JC601 quote request?
Include the cabinet width, preferred slide type, door mount bracket need, color or capacity adjustment, order quantity, destination, and target delivery schedule.
